2025-11
2025-11-28
Do you check your car or house every hour to prevent disaster ? If not, why your investment ?
Chain of Computation is not Network. Cell know that billion years ago.

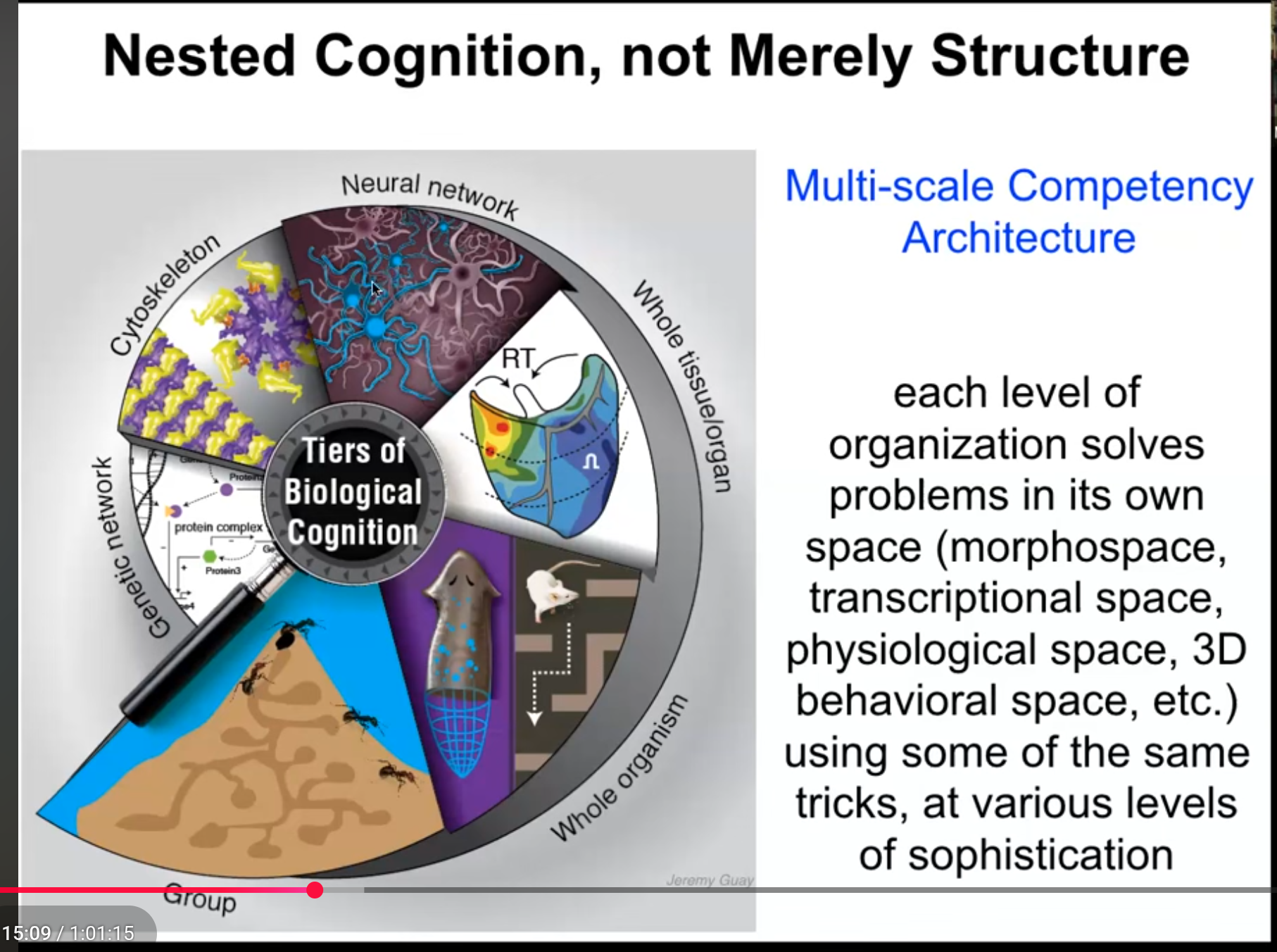

Nested Cognition
Forms of life, forms of mind DR. MICHAEL LEVIN- Copied from thoughtforms.life
What evals do in AI
What evals do Measure performance: Evals systematically check how well an AI model performs its intended tasks, ensuring it delivers accurate and reliable results. Identify issues: They are used to surface potential problems such as bias, safety concerns, and unexpected behavior, including "hallucinations" or incorrect information. Ensure reliability: By testing for consistency, evals help ensure the AI provides dependable results, even though its outputs are probabilistic. Align with business goals: Evals confirm that the AI system is not only technically sound but also aligned with an organization's specific business objectives and ethical standards.
時之輪5 天空之火 下
2025-130
時之輪5 天空之火 中
2025-129
時之輪5 天空之火 上
2025-128
2025-11-27

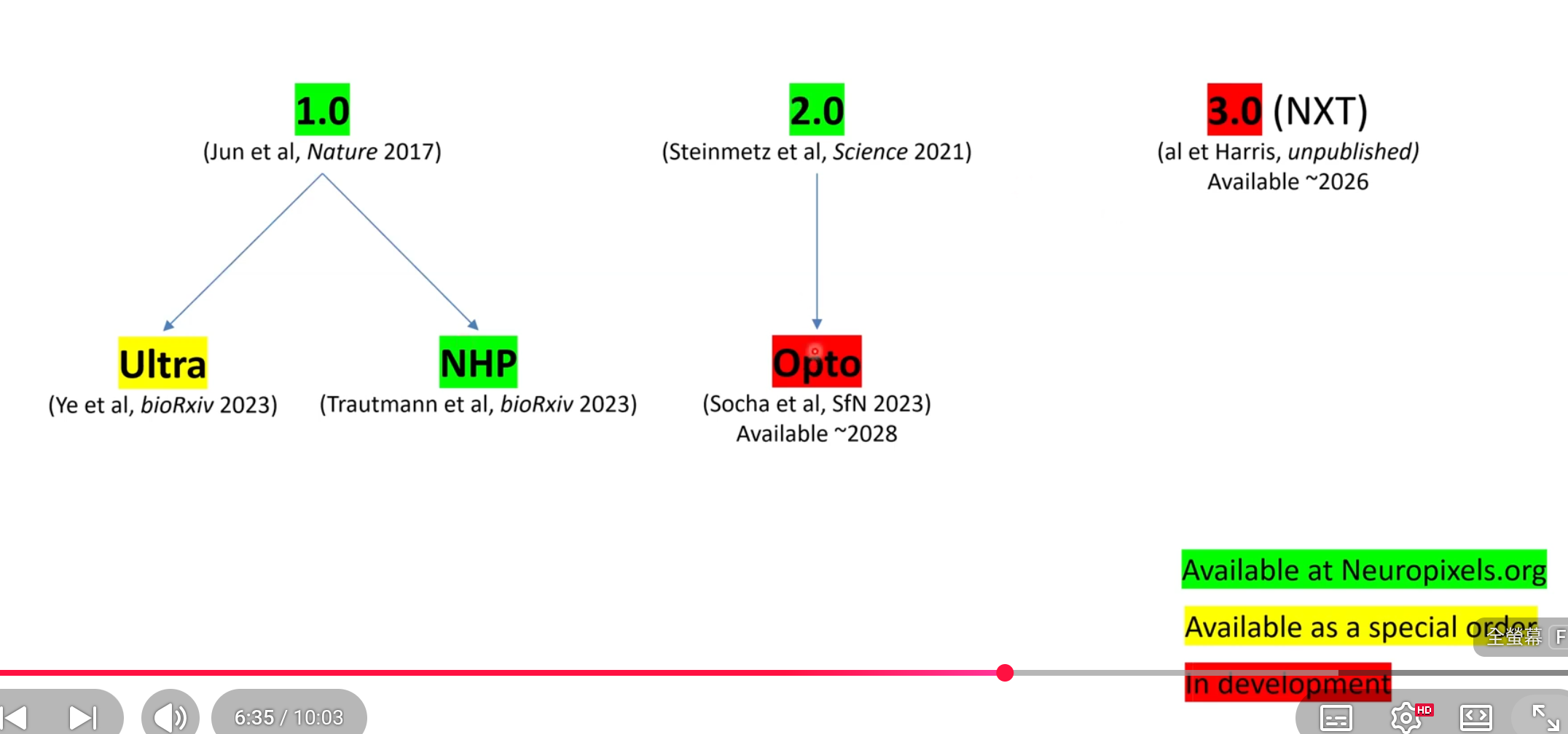

Neuroscience for machine learners
Neuroscience for machine learners
only way out is forward

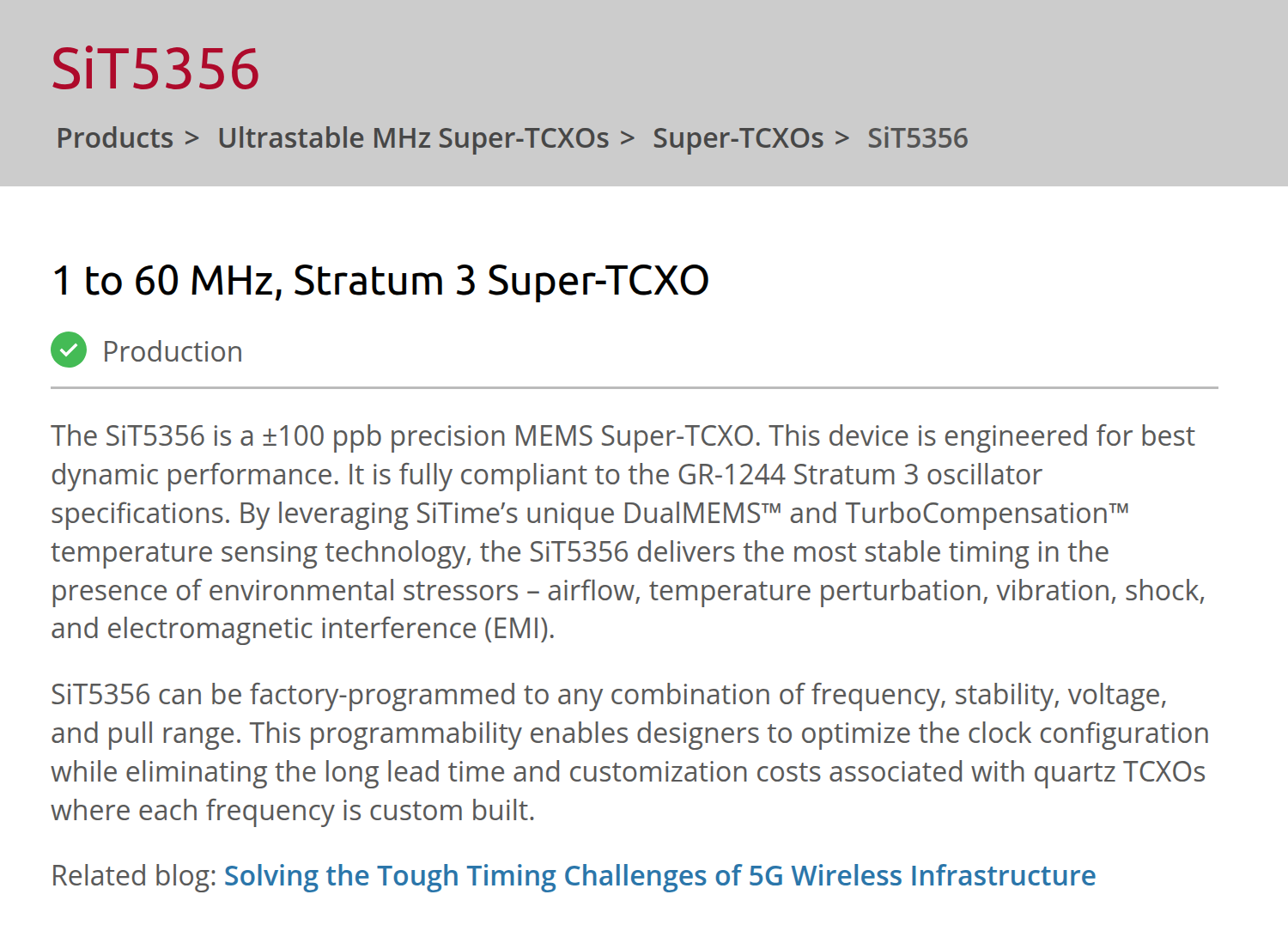

MEMS with Low ppm SiT5356 or SiT5357

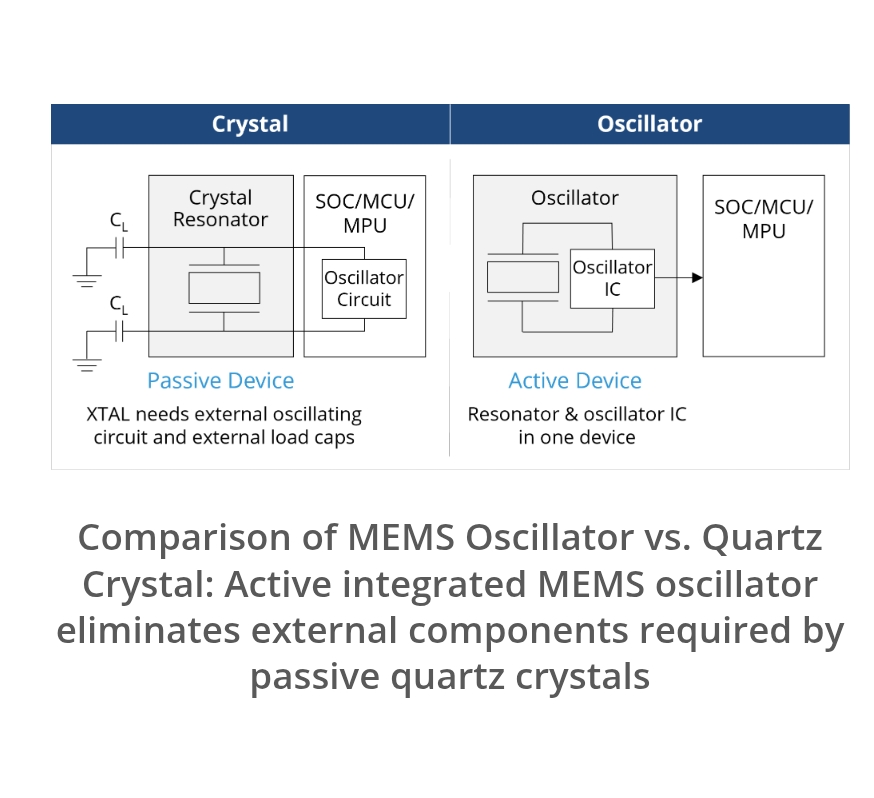

Crystal vs Oscillator

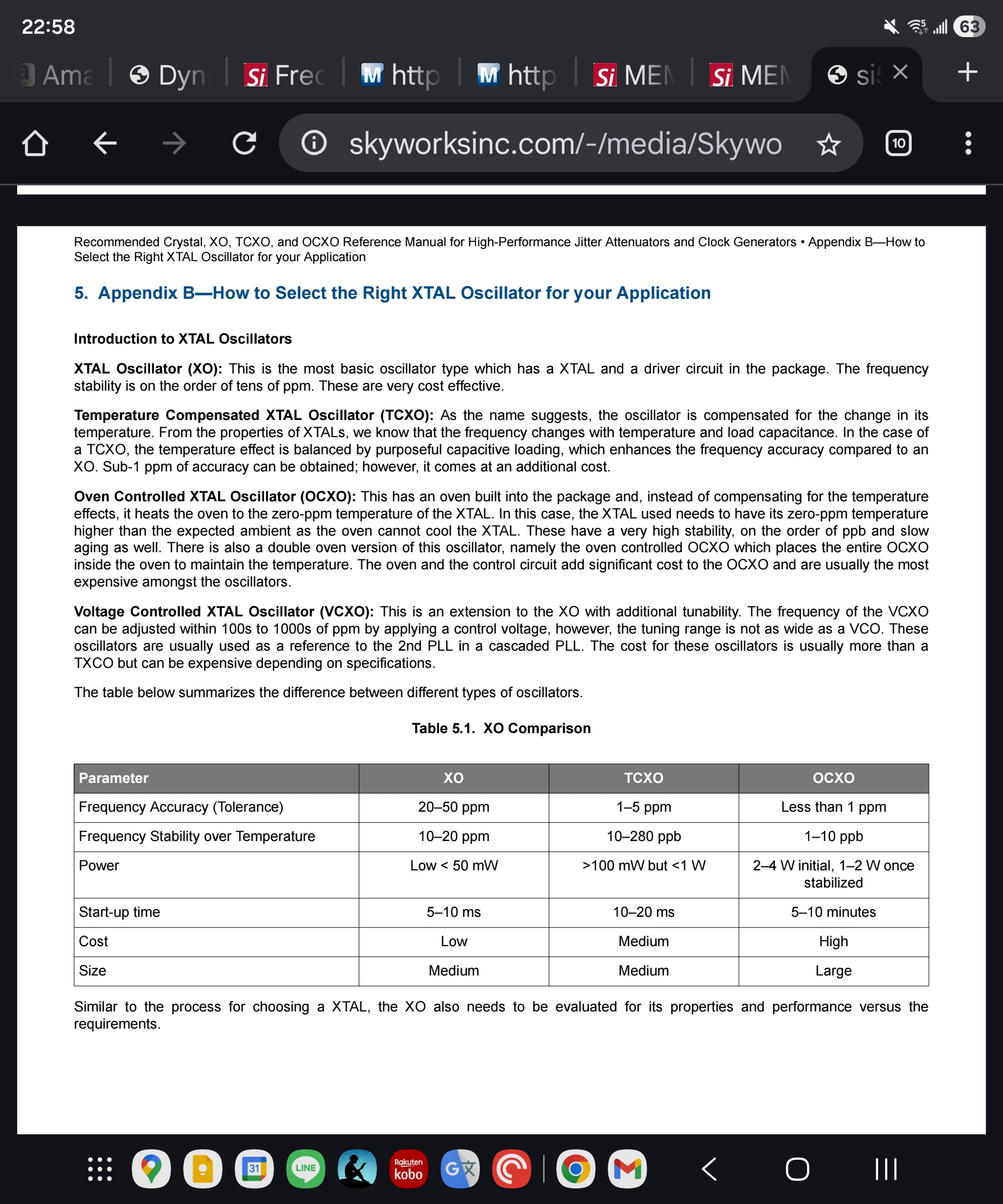

XO TCXO OCXO VCXO
2025-11-26

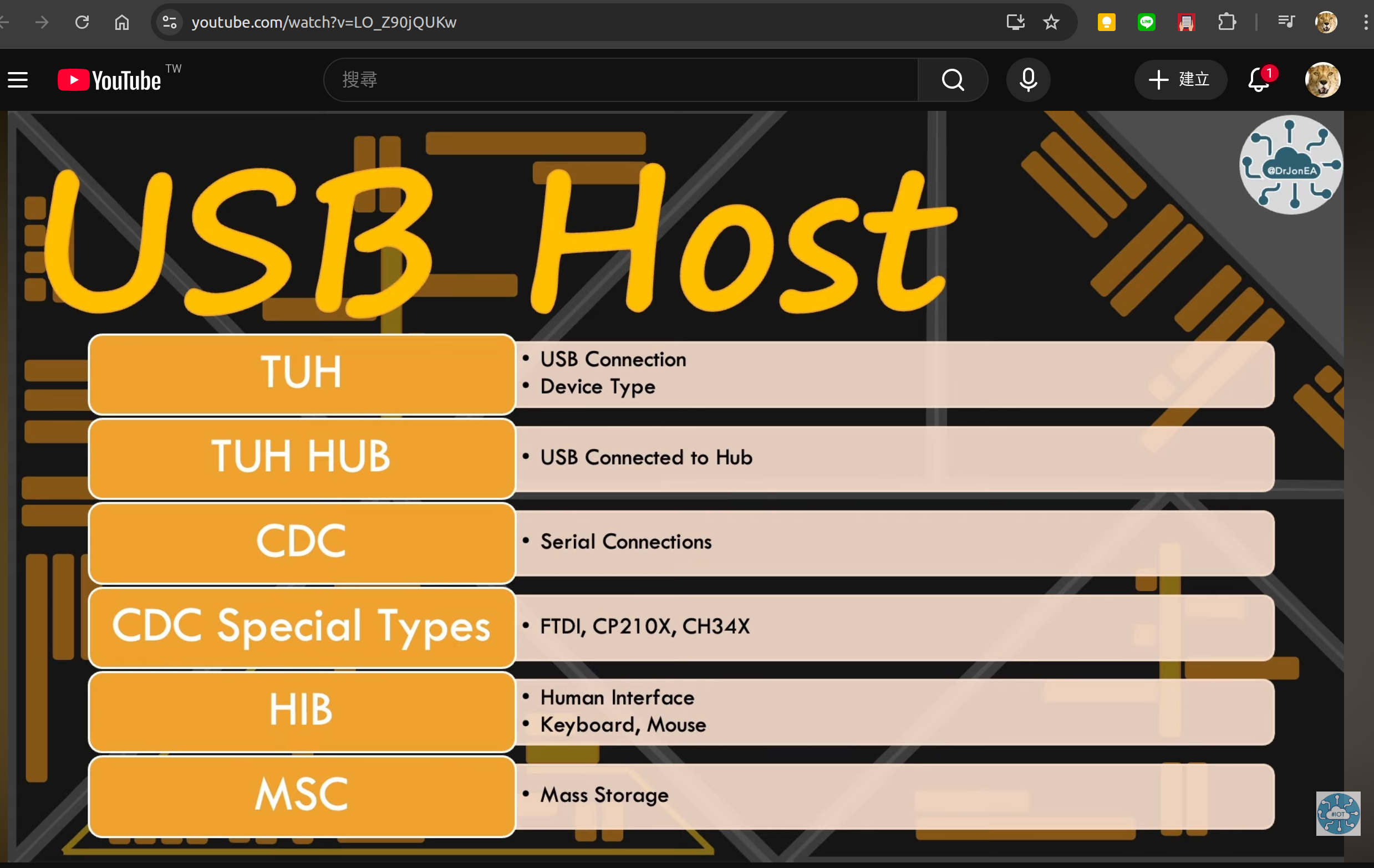

PICO as USB Host
PICO Memory Emulation
Pico as SPI RAM
Pico as ROM
Use what we see or on the surface to describe the internal is wrong.
Makeup things is not Hallucination. It is Imagination. Brain live in Imagination.

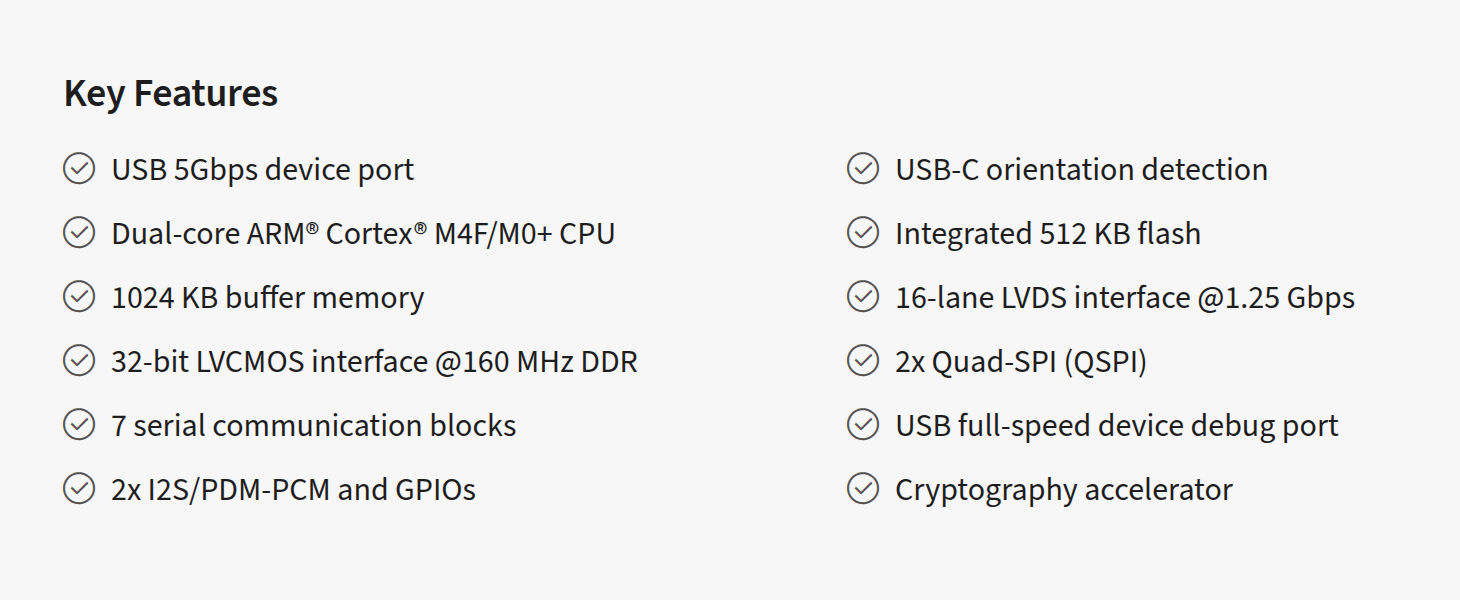

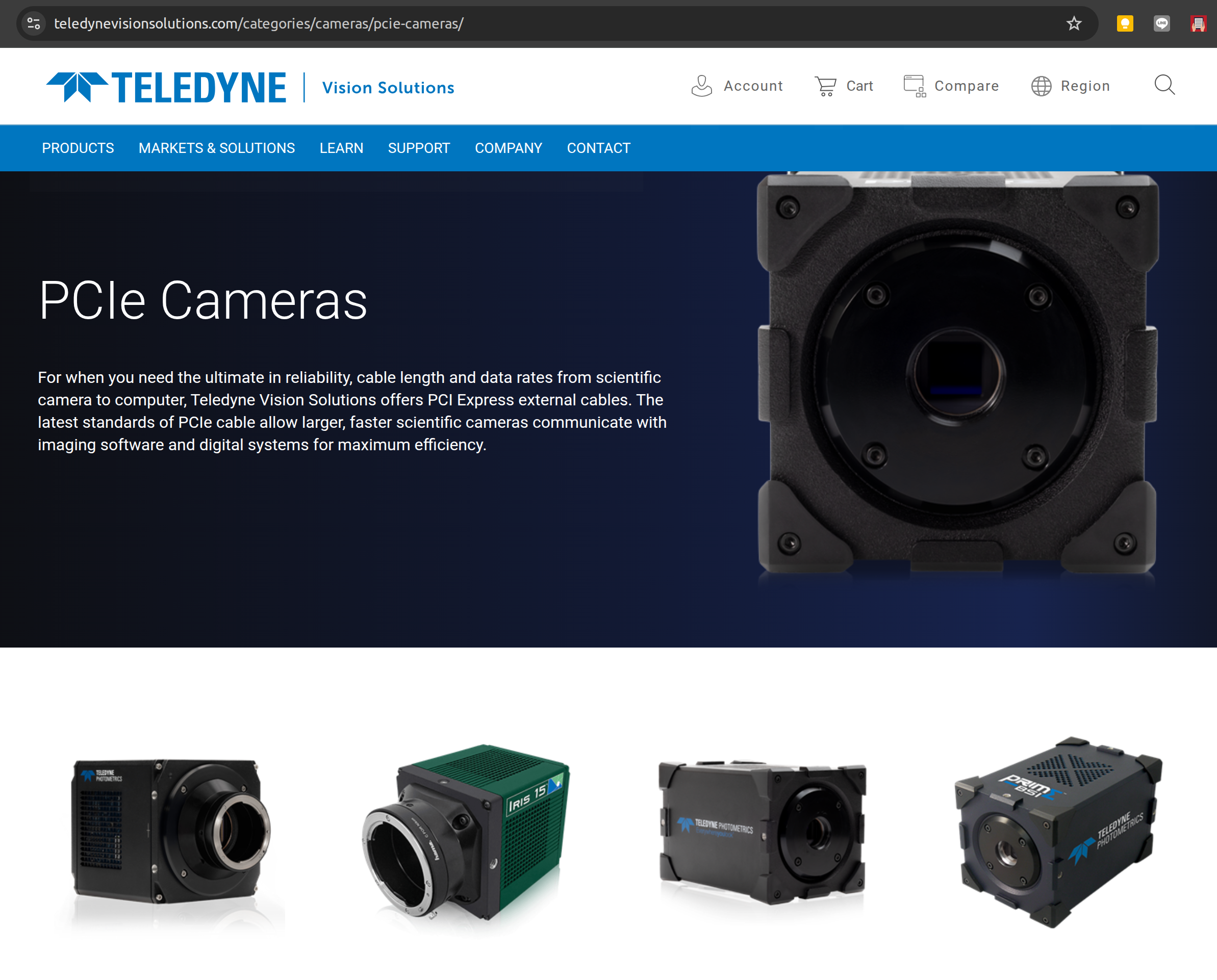

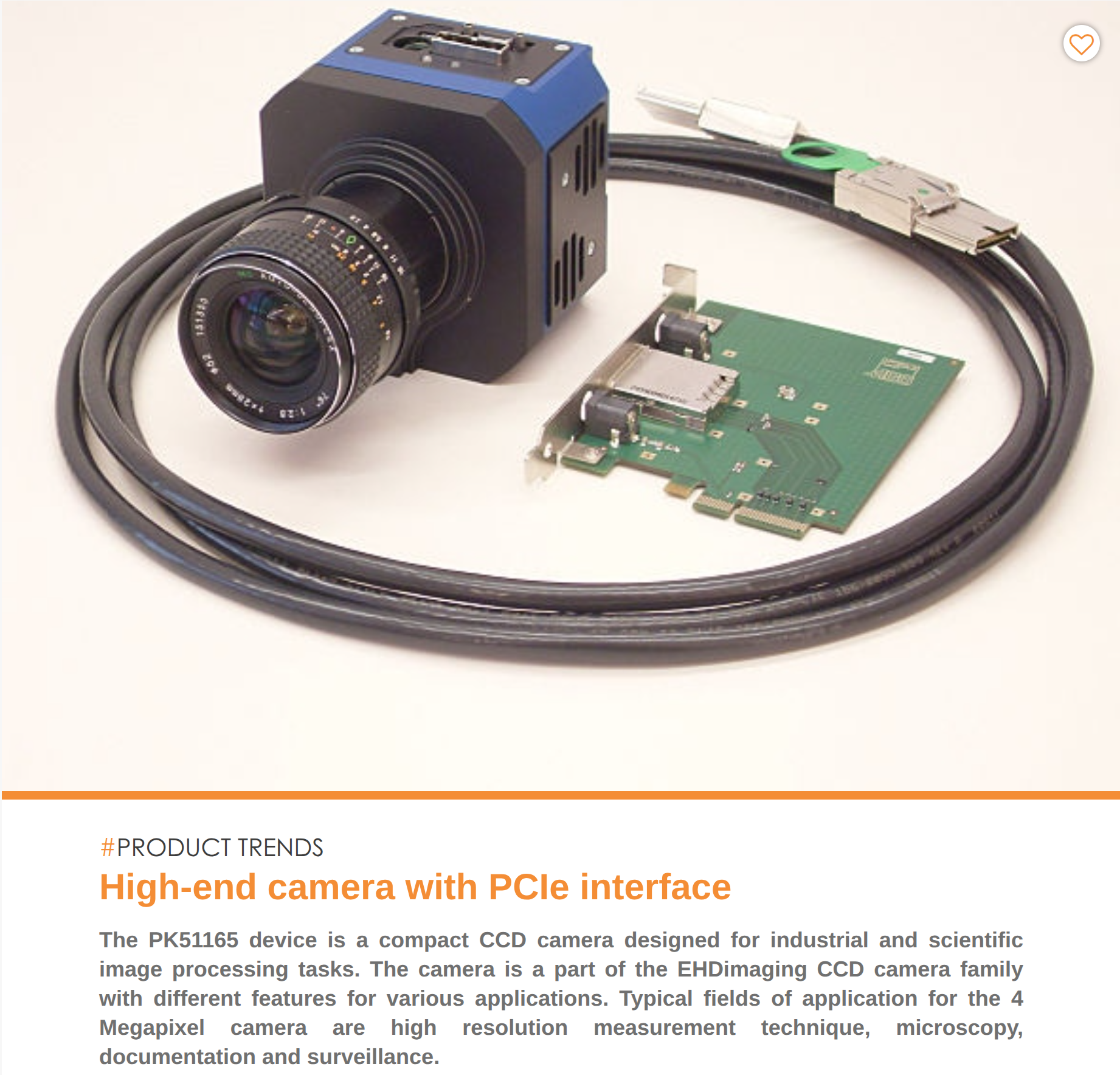

PCIE CAMERA
2025-11-25
Miding My Mitochondria
2025-127
The Past is never dead, It is not even past
Logic, Creativity, and the Limits of AI: How Humans Think in Ways Machines Never Will
Logic, Creativity, and the Limits of AI: How Humans Think in Ways Machines Never Will
In this episode, Angus Fletcher explains why the human brain doesn’t work like a computer and why our deepest strengths come not from logic or data processing but from imagination, emotion, and the ability to invent new futures. Drawing on neuroscience, Shakespeare, evolutionary biology, and his work with U.S. Army Special Operations, Fletcher shows how storytelling is the brain’s oldest “technology,” why intelligence is rooted in action rather than analysis, and what most people get wrong about creativity and common sense.
Angus Fletcher is a professor of story science at Ohio State’s Project Narrative, the world’s leading academic think tank dedicated to understanding how stories work. He earned his PhD from Yale, conducted postdoctoral research at Stanford, and in 2023 received the U.S. Army’s Commendation Medal for his groundbreaking work with Army Special Operations on primal intelligence. He has also written screenplays for major Hollywood studios and networks. His new book is Primal Intelligence: You Are Smarter Than You Know.
2025-11-24
Token-Oriented Object Notation (TOON)
Token-Oriented Object Notation (TOON)
Token-Oriented Object Notation is a compact, human-readable encoding of the JSON data model that minimizes tokens and makes structure easy for models to follow. It's intended for LLM input as a drop-in, lossless representation of your existing JSON.
{
"context": {
"task": "Our favorite hikes together",
"location": "Boulder",
"season": "spring_2025"
},
"friends": ["ana", "luis", "sam"],
"hikes": [
{
"id": 1,
"name": "Blue Lake Trail",
"distanceKm": 7.5,
"elevationGain": 320,
"companion": "ana",
"wasSunny": true
},
{
"id": 2,
"name": "Ridge Overlook",
"distanceKm": 9.2,
"elevationGain": 540,
"companion": "luis",
"wasSunny": false
},
{
"id": 3,
"name": "Wildflower Loop",
"distanceKm": 5.1,
"elevationGain": 180,
"companion": "sam",
"wasSunny": true
}
]
}
context:
task: Our favorite hikes together
location: Boulder
season: spring_2025
friends[3]: ana,luis,sam
hikes[3]{id,name,distanceKm,elevationGain,companion,wasSunny}:
1,Blue Lake Trail,7.5,320,ana,true
2,Ridge Overlook,9.2,540,luis,false
3,Wildflower Loop,5.1,180,sam,true
pip install python-toon

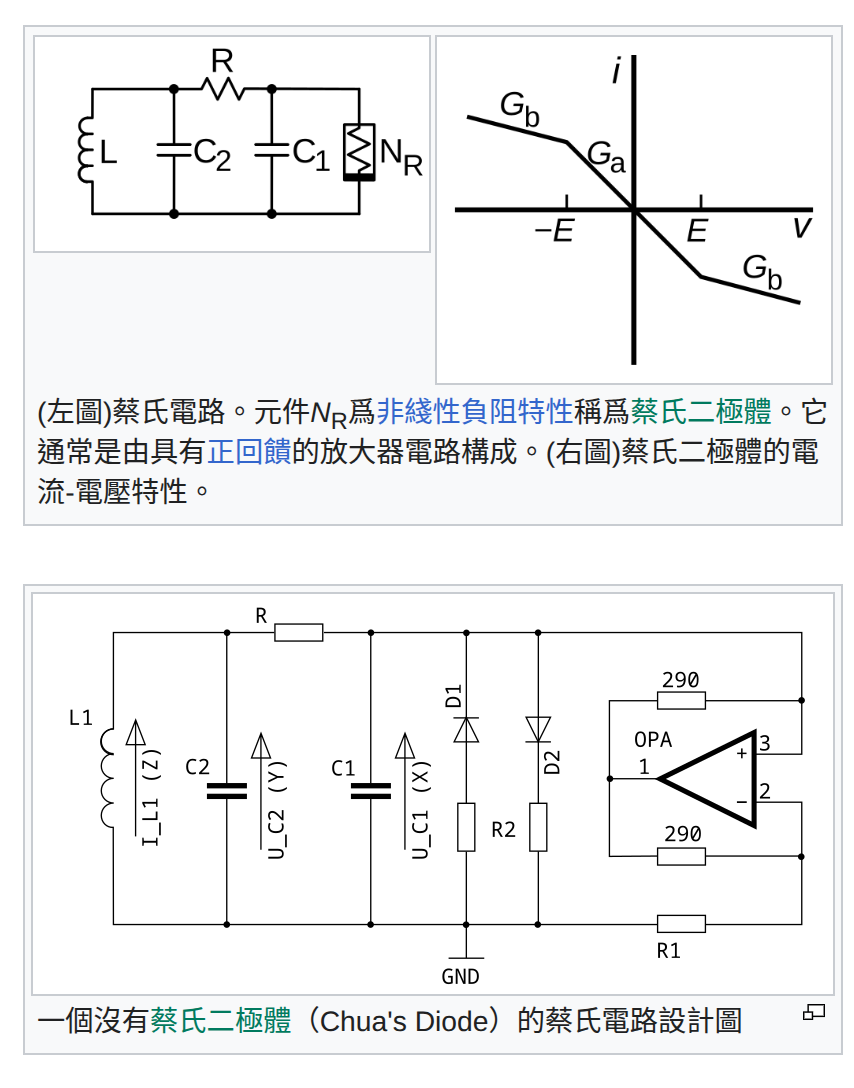

蔡氏電路
蔡氏電路（英語：Chua's circuit），一種簡單的非線性電子電路設計，它可以表現出標準的混沌理論行為。在1983年，由蔡少棠教授發表，當時他正在日本早稻田大學擔任訪問學者[1]。這個電路的製作容易程度使它成為了一個無處不在的現實世界的混沌系統的例子，導致一些人聲明它是一個「混沌系統的典範」。[2]
時之輪 闇影漸起 下
2025-126
時之輪 闇影漸起 中
2025-125
時之輪 闇影漸起 上
2025-124
Checklist for Schematics v2025-08-20
Andrew Greenberg - http://github.com/andrewgreenberg

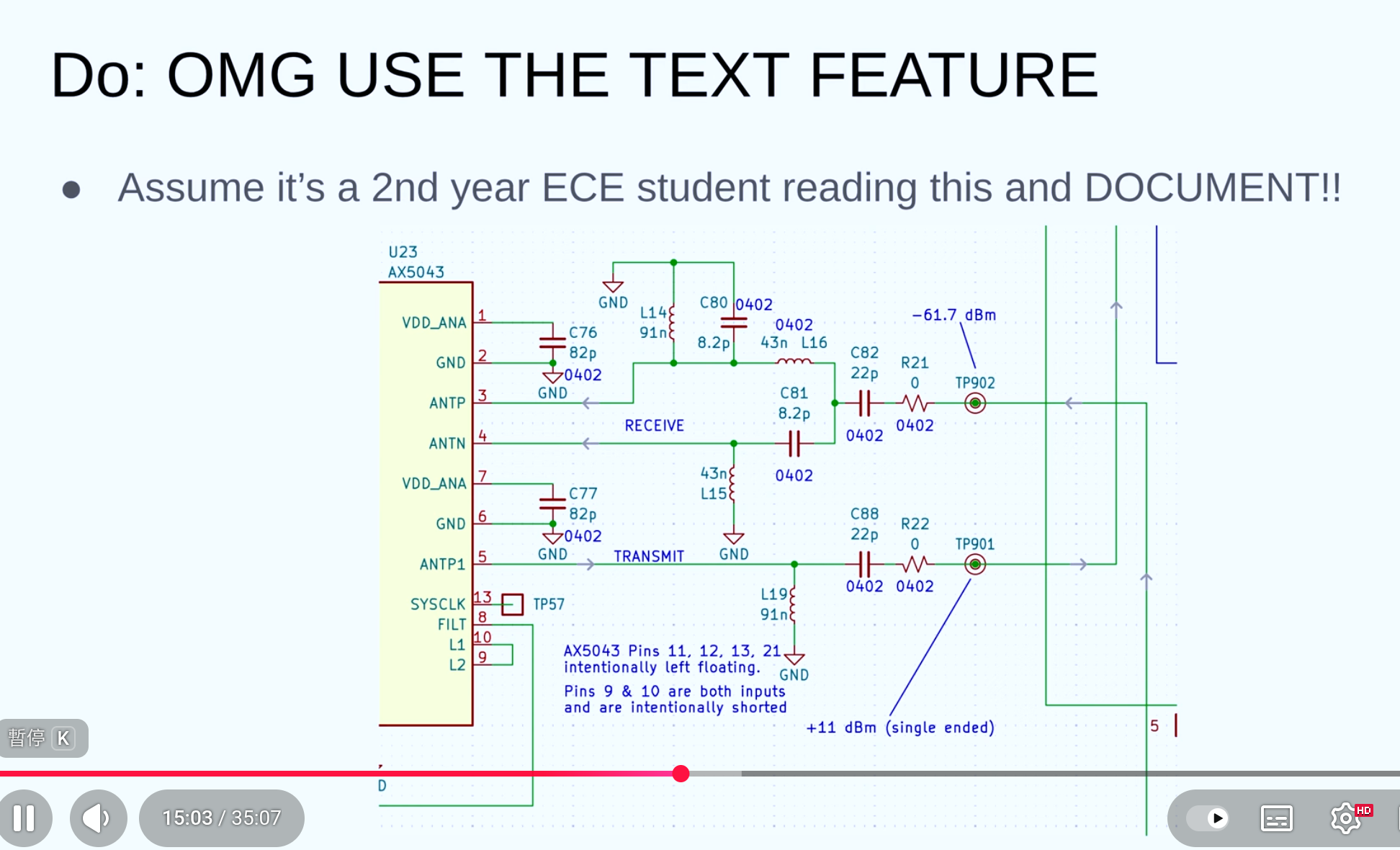

Actually Useful Schematics in KiCad - Andrew Greenberg Video
Visual Design Best Practices

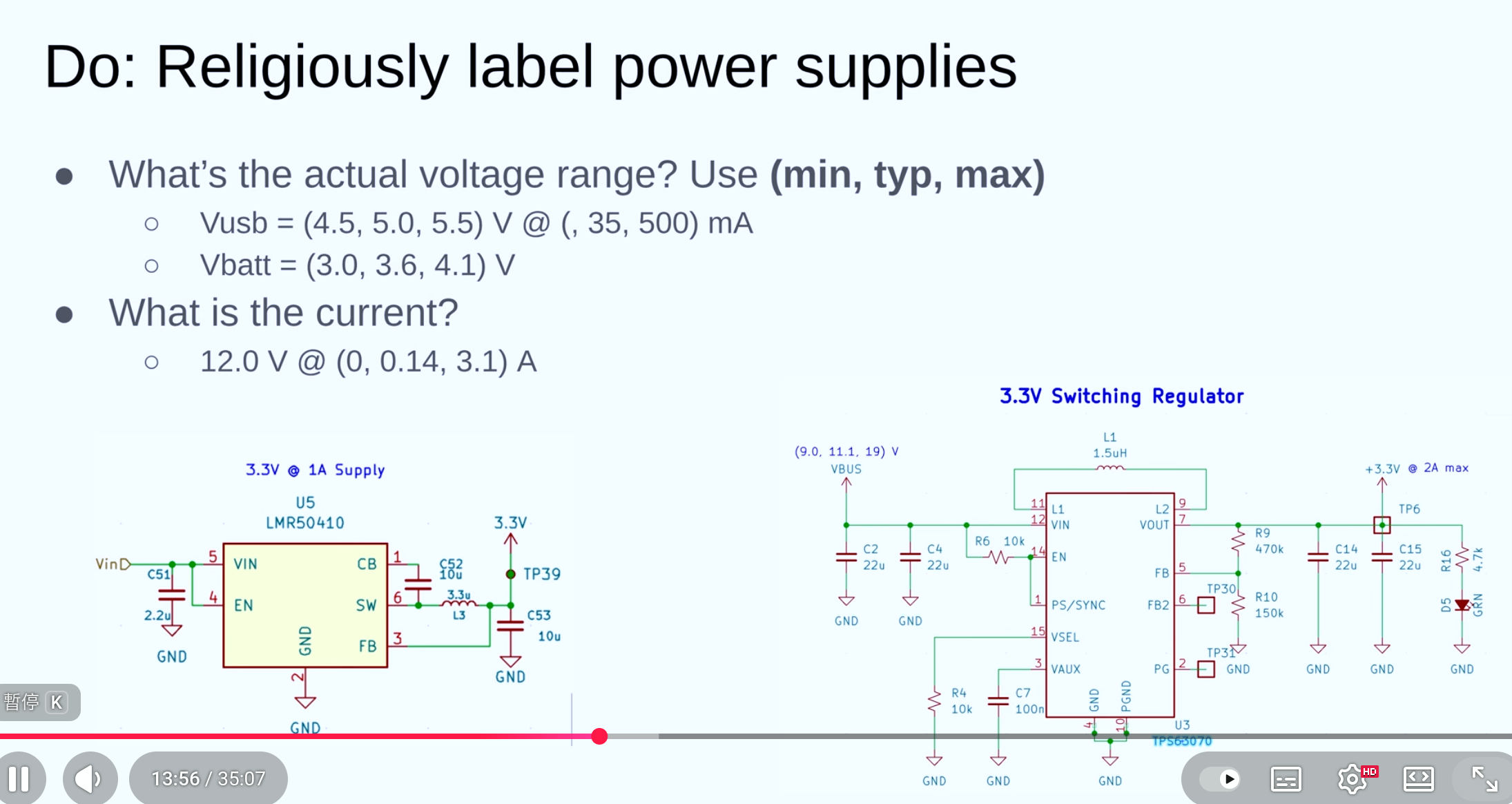

- Power supplies use supply symbols (not wires) with useful names
- Positive supplies point up, ground and negative supplies point down. Always.
- All important nets are descriptively named
- Net “stubs” (nets visually connected to only one pin) use an “off-sheet” type of label with the correct In/Out/ Bidirectional flag shape and cross reference info (sheet / location)
- Functional blocks are clearly labeled (plenty of whitespace around it, or maybe even a box)
- Functional blocks have text that describes what they do and their requirements (e.g., Vbatt to 3.3 V @ 1 A switching power supply”)
- There's a frame around the schematic
- It's clear where your power is coming from and what the power requirements are (V/I)
- Data flow (inputs, outputs, requirements) are clear and labeled
- All connectors have text that describes what they go to
- Avoid crossing net wires as much as is reasonably possible
- Groups of nets above about ≥ 4 nets collected into buses
Schematic Symbols
- All symbols are schematic symbols, not packages (inputs on left, outputs on right, power on top and bottom)
- Pins have correct electrical rule check (ERC) direction (inputs, outputs, passives, etc)
- Components with symbolic shapes use those shapes (e.g, opamps are triangles)
Part values
- Capacitors have the appropriate voltage (usually ≥ 2x working voltage, also see this)
- Special case capacitors marked with power and tolerance
- Power dissipation checked on all resistors
- Special case resistors marked with power and tolerance
- Layout features that are circuit elements (e.g., copper inductor) are labeled in the schematic
Circuit Gotchas
- MOSFETs oriented correctly WRT the body diode (!), with note if intentionally forward conducting
- Check IC part numbers reflect the correct package type
- Small, low ESR (e.g., ceramic) bypass capacitors on all IC supplies (check datasheet for values)
- Check voltage inputs and outputs match across power domains (e.g., 5V to 3.3V)
- Check that powered-off domains are not phantom powered by their inputs from other circuits (including test circuits, like UARTs)
- Check for UART TX/RX swaps (TX to RX, RX to TX)
- Check for pull-up/down resistors on open collector/drain outputs (e.g., I2C lines)
- Check for required pull-up/down resistors to set nets in a default state at power up
Design for Test
- Place test points on critical signals (consider through hole test points for bed-of-nails testers)
- Add debugging hardware (e.g., LEDs, UART connectors, jumpers, scope probe points, etc)
Design for Fail
- Group components in separable modularly powered blocks and use zero ohm resistors or cuttable jumpers to disconnect (especially for switching power supplies!)
- Unused pins go to usable test points. Consider adding some random pull-up and pull-down resistors connected to a test point on the board, too
- UART (serial port) TX/RX are always mixed up, consider cuttable jumpers here
- Consider over-voltage/ polarity input protection if user can screw this up
Electrical Rule checks
- No unapproved errors OR warnings in the ERC
- All important excluded errors/warnings have a comment on why they’re approved
BOM Fixes
- Add “MFR” (Manufacturer) and “MPN” (Manufacturer’s Part Number) to all components as attributes
- Bonus points for adding a datasheet link and description to part attributes
“Almost Done” checks
- Your schematic is peer reviewed by at least one person not involved in the design.
- Check that your specialized parts are in stock at a distributor
- Re-run ERC and double check your approved errors, looking for accidentally approved errors
- Update your schematic version and/or date
Please comment on this checklist using Google Doc Comments!!
rules-and-guidelines-for-drawing-good-schematics
