Sync Expander and Sync Hub Specification

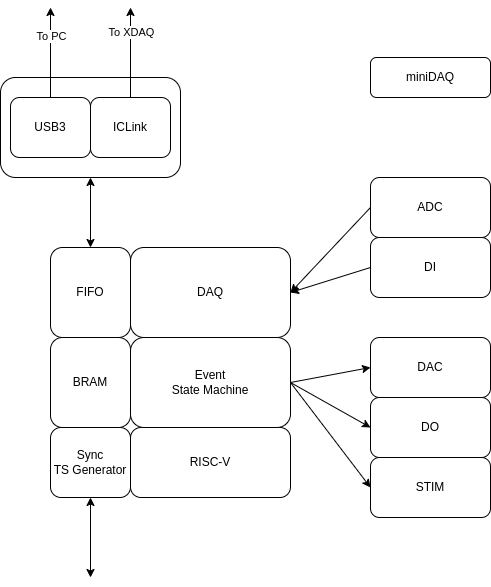

Block 1

Design Consideration

Reference

time-and-synchronization-v24.pdf

TDMS HDMI LVDS Speed 250MHz

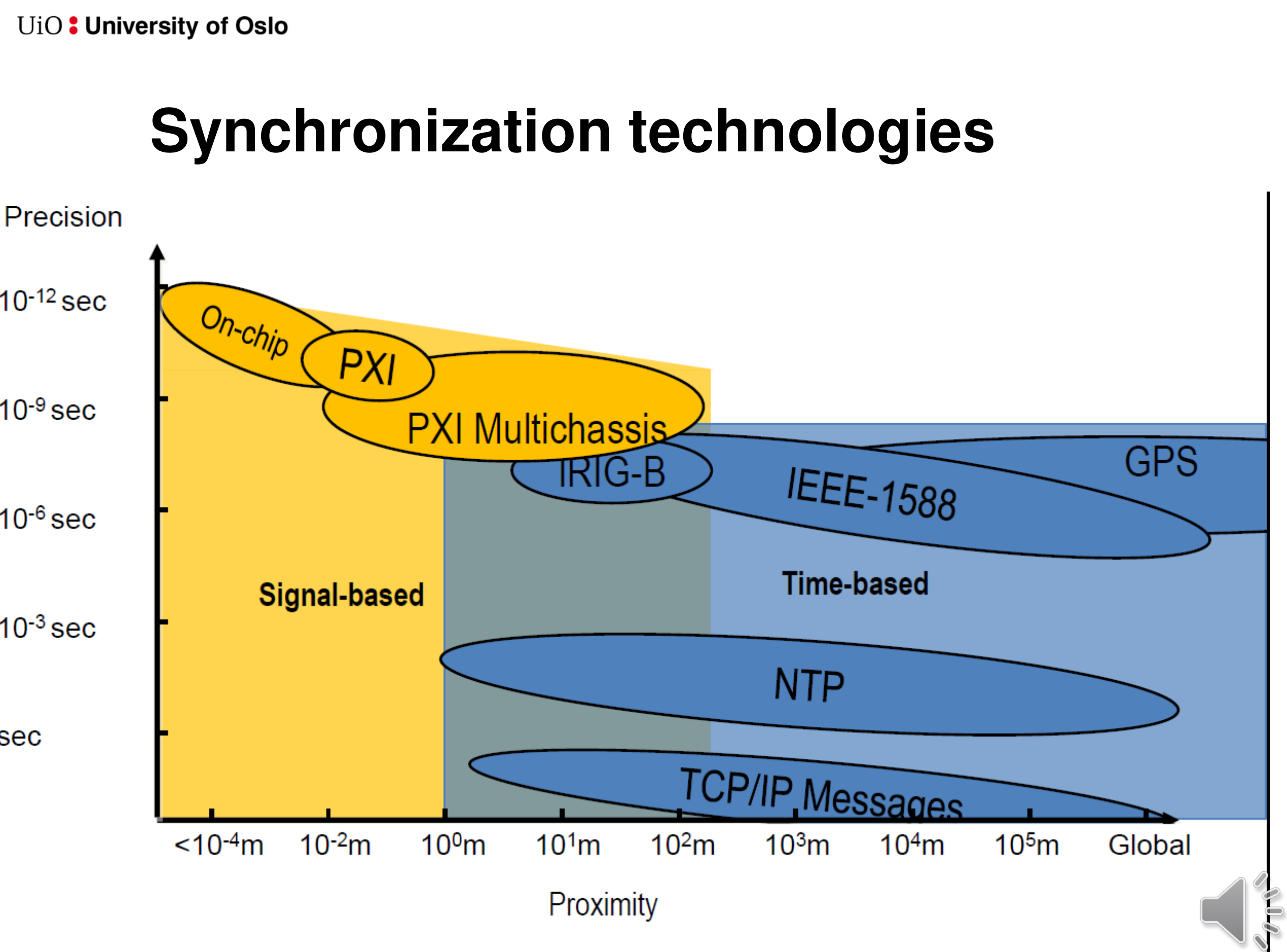

DAQ Distance Consideration

If DAQ Distance between each other > 100M , Time Base Sync is better (PTP)
Otherwise, Signal Base Sync is OK.

Disconnect Possibility

If Signal between DAQ will lost, DPLL will be needed.
Otherwise, use the Signal as Clock is OK.

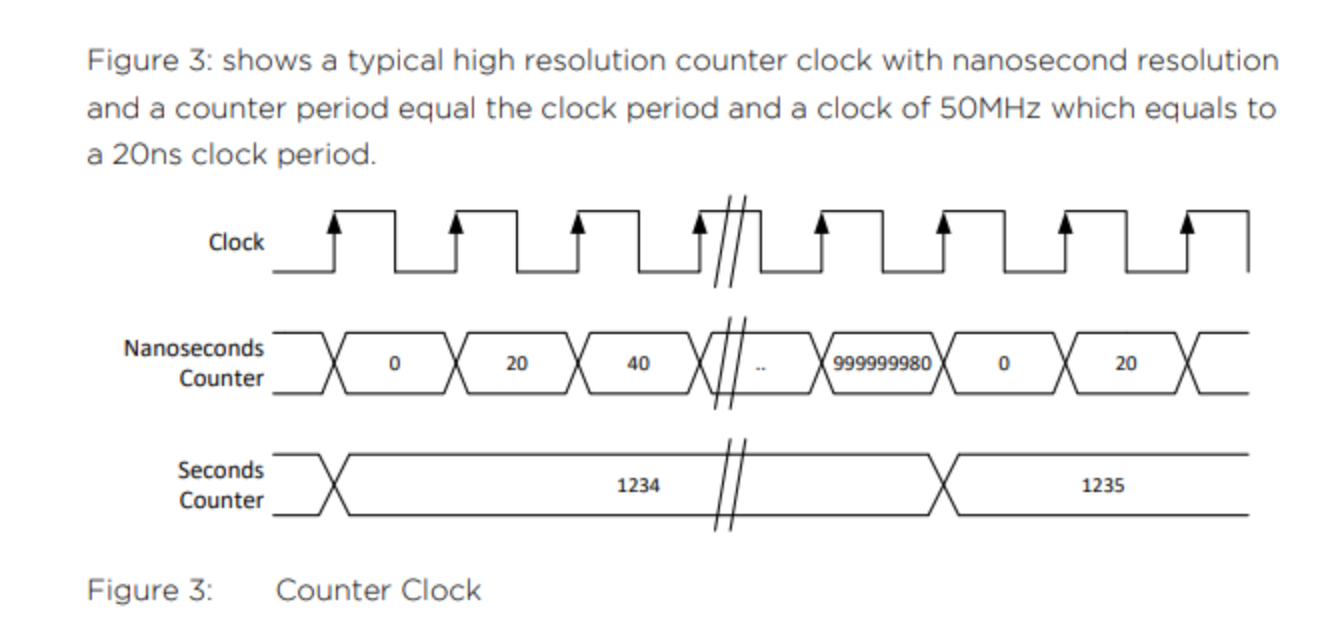

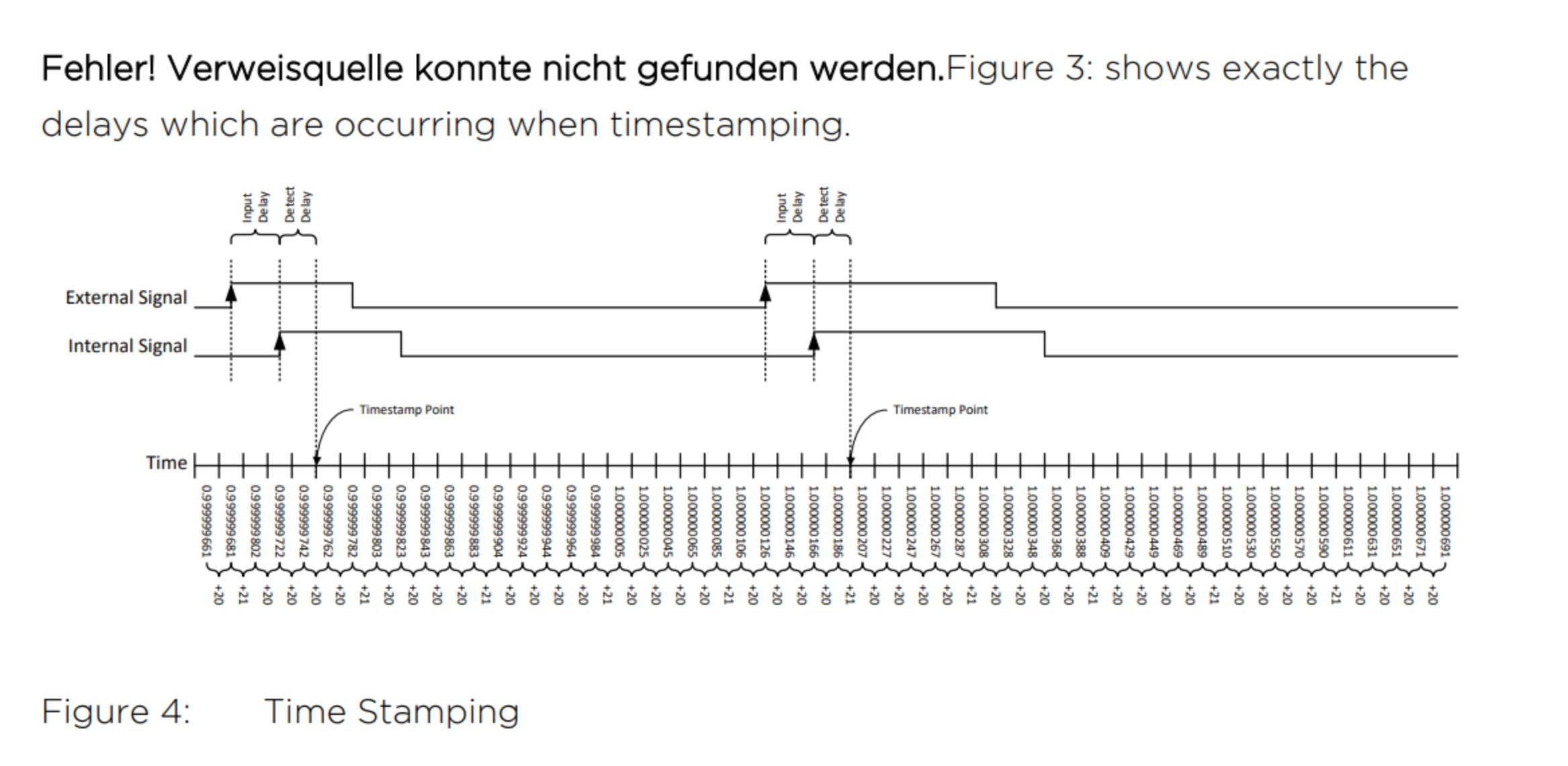

TimeStamp Bits Number

  • 1KHz Clock : 32Bits = 2^32/1000/86400 = 49.7 Days 1000us
  • 10KHz Clock : 32Bits = 2^32/10000/86400 = 4.97 Days 100us
  • 50KHz Clock : 32Bits = 2^32/50000/86400 = 0.99 Days 20us
  • 100KHz Clock : 32Bits = 2^32/100K/86400 = 0.49 Days 10us

Sync Hub Specification

MCU Or FPGA

USB Power and Data
CK_IN for External Clock Source.
(if none use Internal clock source)

Signal Based Sync:
CLK_OUT1 : User Define Clock Source 1
CLK_OUT2 : User Define Clock Source 2

Time Based Sync:
CLK : Data Clock
Data : Time Data

TX : Send Data to Sync Expander
RX : Receive Data from Sync Expander

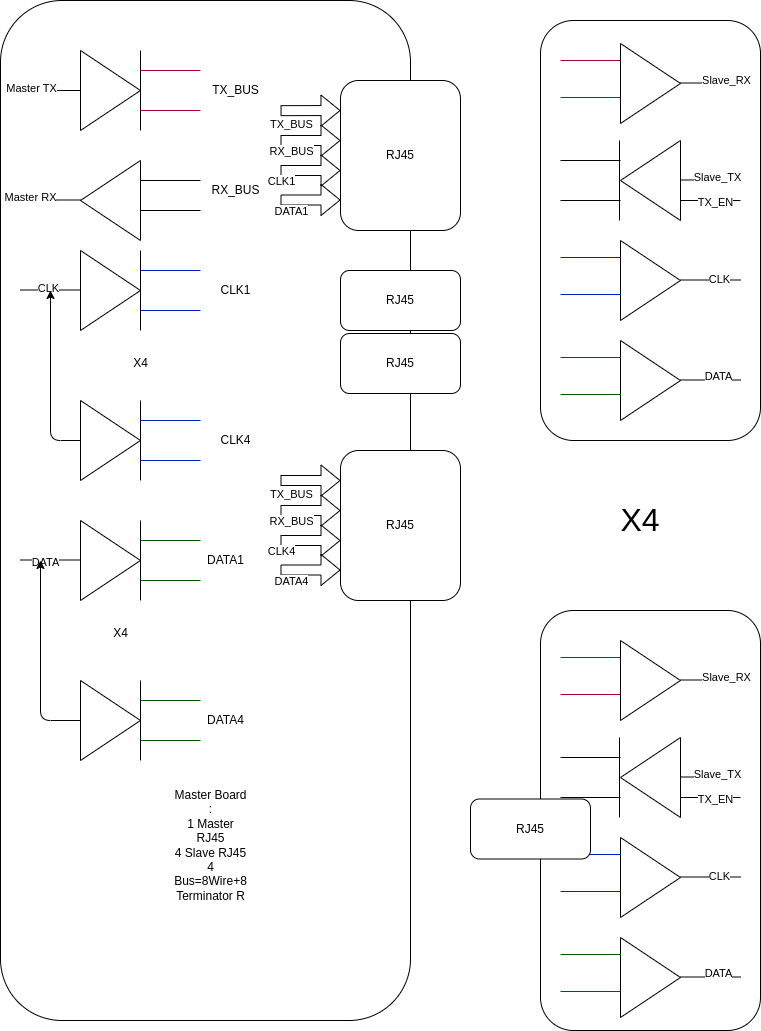

LVDS Bus

1.Output LVDS , 1 to 4 (DS91M124)
2.Inout LVDS  , 4 to 1 (SN65MLVD203B for TX/RX)

Sync Expander

Signal Based Sync:
CLK_IN1: Time Base Clock 1
CLK_IN2: Time Base Clock 2

Time Based Sync:
CLK : Data Clock
Data : Time Data

RX : Date from Hub
TX : Data to Hub
TX_EN : Enable Send Data
Address : Sync Expnader's ID
Locked: Lock to CLK_IN1 or CLK_IN2 (For DPLL)
CLK_Fail: No CLK Input
ARM : Output to DAQ
Start : Output to DAQ
Stop : Output to DAQ
Ready : DAQ to Sync Expander

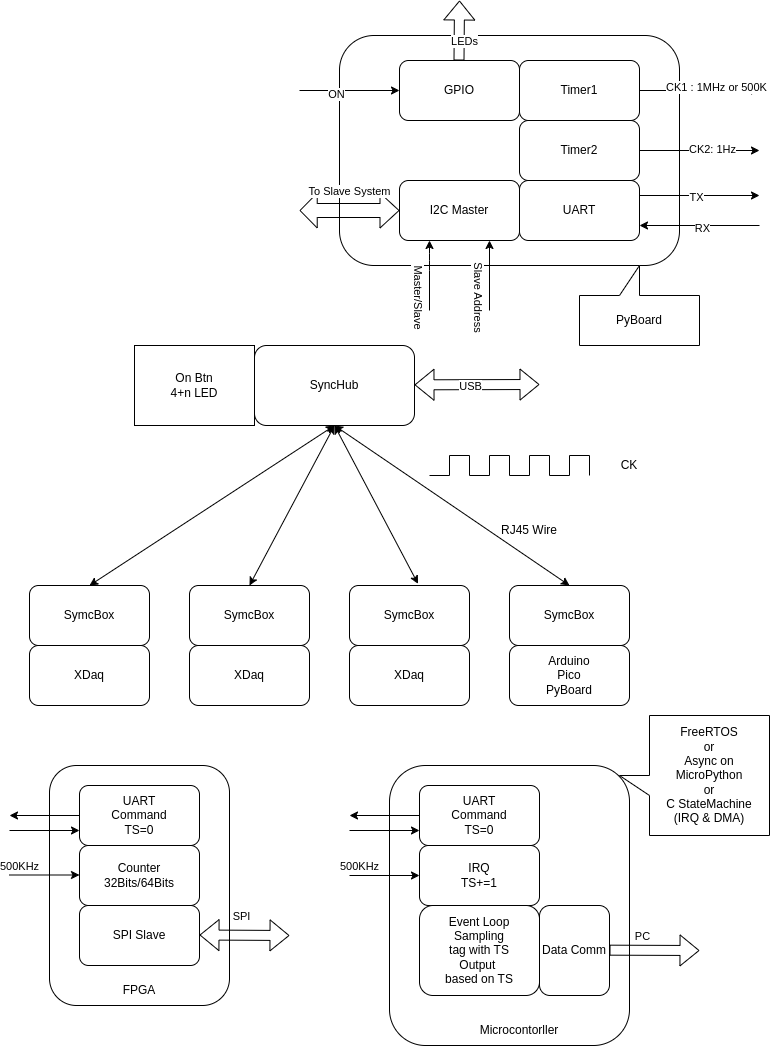

Bus Test Board

Test Board

Master

  • MCU Send SPI CLOCK/DATA
  • MCU Send TX
  • MCU Receive RX from Loop Back on Slave Board

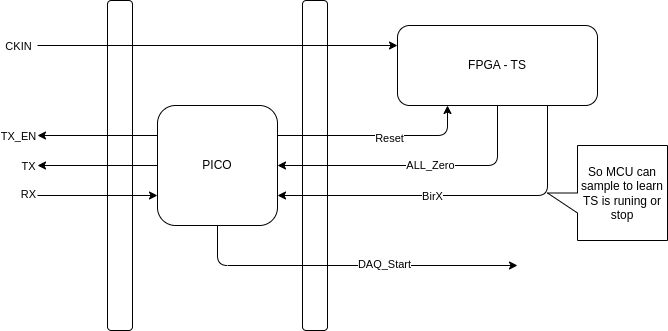

Slave

  • MCU Received SPI Clock/Data
  • MCU RX Date from Master
  • MCU TX Send Data from MCU RX Data
  • MCU TX Enable ?
