SyncBox Master Specification

Function Description

A Clock distribution system use RJ45 wire.
It can deliver 2 clock.
1MHz fast clock for XDAQ
1KHz slow clock for MCU
1 UART for Control Start/Stop and Reset

Generate Clock1(1MHz) Clock2(<1KHz) to remote XDaq for Sync
Suport max 16/32(??) SyncBox Slave.

Control remote XDaq through UART port to SyncBox Slave.
Such as , Reset/Start/Stop command.
And Master can tell slave staus from the UART Port.

SyncMaster IO Define

Port	Function	IO
USB	Connect to PC for upgrade	I/O/Power
	and control as vcom
Maste	Master/Extention	I
Ext CK Sel	Clock Source Selection	I
Start Button	Kick start everything	I
Ext CK1	OSC Input	I
Ext CK2	OSC Input	I
Ext CK1	OSC Output	O
Ext CK2	OSC Output	O
Power LED	Indicate Power On	O
Status LED1	Indicate Slave Status	O
Status LED2	Indicate Slave Status	O
RJ45	8 Ports	I/O
RJ45 to Slave	VDD/VSS/TX2/RX2	I/O
Ext IO	8Pins/8 VSS/	I/O

SyncSlave IO Define

Port	Function	IO
USB	Connect to PC for upgrade	I/O
	and control as vcom
HDMI	Connect to XDaq	I/O/Power
DIP Switch	Set Slave Address (5Bits)	I
Power LED	Indicate Power On	O
Status LED1	Indicate Slave Status	O
Status LED2	Indicate Slave Status	O
RJ45	1 Ports	I/O
Ext IO	8Pins/8 VSS/	I/O

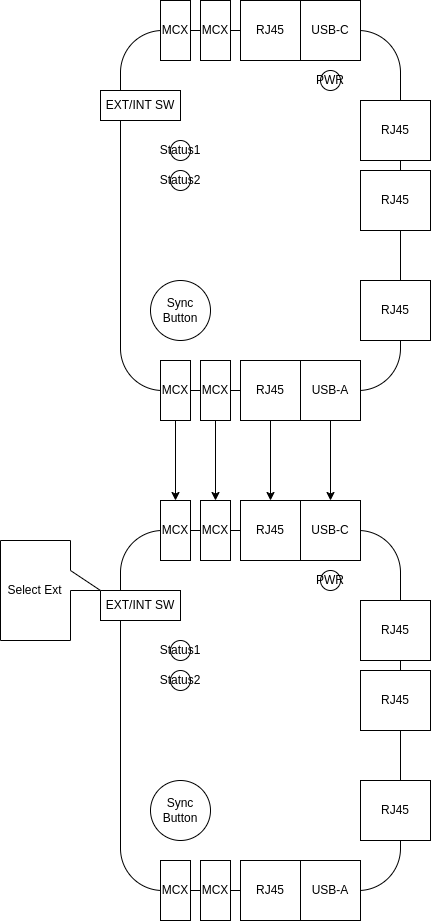

Case View

Power

Type-C 5V
HDMI 12V ?

Control Path

Button <-> Pico <-> UART/Clock1/Clock2
USB <-> Pico <-> UART/Clock1/Clock2

Data Path

RJ45 <-> RJ45
