System C
Serdes HeadStage

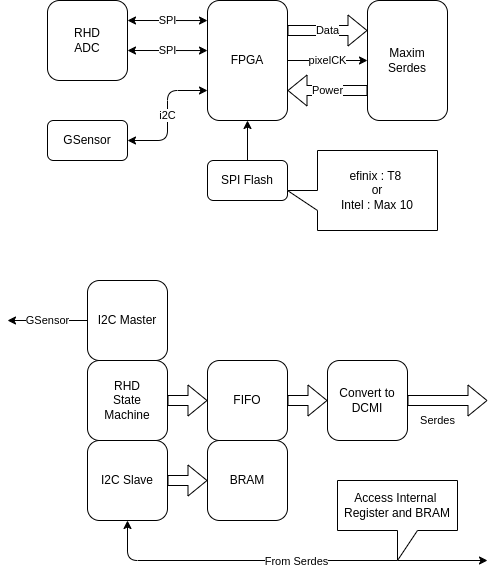

Block Diagram
FPGA
| FPGA | Power | EEPROM |
|---|---|---|
| Intel Max10 | 3.3V | Embedded |
| efinix T8 | 1.1V Core 3.3V IO |
External |
Pin Requirements
| Block | Pin Number | Description |
|---|---|---|
| RHD | 7 CMOS 14 LVDS |
CK MOSI MISO x 4 CS |
| I2C Master | 2 | SCL SDA |
| I2C Slave | 2 | SCL SDA |
| DMCI | 17 | Data x 16 PixelCK |
